容易操作

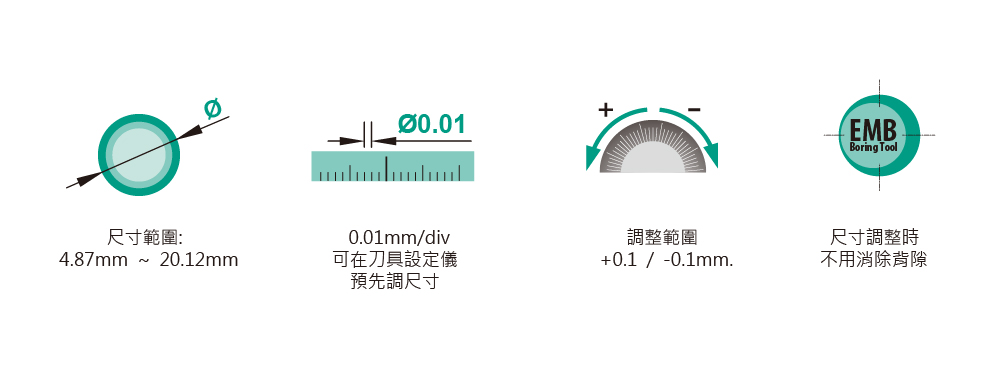

● 尺寸調整容易，可在刀具設定儀預先調尺寸或在切削中心機上直接調整
● 尺寸調整時，不用消除背隙
● 更換頭部快速，尺寸變換容易

搪刀頭部從5mm到50mm可更換
● 頭部尺寸齊全，更換快速，不影響動平衡

低成本的小孔徑精搪刀
● 比其他精搪刀更經濟

高轉速
● 高轉速設計，動平衡G6.3 10,000rpm
● 刀片加工鋁合金700m/min
● 階級孔，加倒角，加平面特殊搪刀頭部可訂製

Order No.Part No.ØDL1
99146-SB32H SB32-146-31 45 31.3
99146-BT30H BT30-146-51 45 51.3
99146-BT40H BT40-146-56 45 56.3
99146-BT50H BT50-146-77 45 77.3
99146-HSK63AH HSK63A-146-72 45 72
99146-CAT40H CAT-146-56 45 56.3




Order No.Part No.ØDL1刀片/螺絲/板手
99146-0500S C20-0500-10L 4.87~5.12 10.00 CC...030102
NS-16030
0.4Nm / NK-T6
99146-0600S C20-0600-12L 5.87~6.12 12.00
99146-0700S C20-0700-14L 6.87~7.12 14.00 CC...040102 NS-20036
0.6Nm / NK-T6
99146-0800S C20-0800-16L 7.87~8.12 16.00
99146-0900S C20-0900-18L 8.87~9.12 18.00 CC...060204
螺絲:
NS-25045
0.9Nm
板手: NK-T7
99146-1000S C20-1000-25L 9.87~10.12 25.00
99146-1025S C20-1025-25L 10.12~10.37 25.00
99146-1050S C20-1050-26L 10.37~10.62 26.25
99146-1075S C20-1075-26L 10.62~10.87 26.25
99146-1100S C20-1100-27L 10.87~11.12 27.50
99146-1125S C20-1125-27L 11.12~11.37 27.50
99146-1150S C20-1150-28L 11.37~11.62 28.75
99146-1175S C20-1175-28L 11.62~11.87 28.75
99146-1200S C20-1200-30L 11.87~12.12 30.00
99146-1225S C20-1225-30L 12.12~12.37 30.00
99146-1250S C20-1250-31L 12.37~12.62 31.25
99146-1275S C20-1275-31L 12.62~12.87 31.25
99146-1300S C20-1300-32L 12.87~13.12 32.50
99146-1325S C20-1325-32L 13.12~13.37 32.50
99146-1350S C20-1350-33L 13.37~13.62 33.75
99146-1375S C20-1375-33L 13.62~13.87 33.75
99146-1400S C20-1400-35L 13.87~14.12 35.00
99146-1425S C20-1425-35L 14.12~14.37 35.00
99146-1450S C20-1450-36L 14.37~14.62 36.25
99146-1475S C20-1475-36L 14.62~14.87 36.25
99146-1500S C20-1500-37L 14.87~15.12 37.50
99146-1525S C20-1525-37L 15.12~15.37 37.50
99146-1550S C20-1550-38L 15.37~15.62 38.75
99146-1575S C20-1575-38L 15.62~15.87 38.75
99146-1600S C20-1600-40L 15.87~16.12 40.00 CC...060204
螺絲:
NS-25060
0.9Nm
板手: NK-T7
99146-1625S C20-1625-40L 16.12~16.37 40.00
99146-1650S C20-1650-41L 16.37~16.62 41.25
99146-1675S C20-1675-41L 16.62~16.87 41.25
99146-1700S C20-1700-42L 16.87~17.12 42.50
99146-1725S C20-1725-42L 17.12~17.37 42.50 CC...060204
螺絲:
NS-25060
0.9Nm
板手: NK-T7
99146-1750S C20-1750-43L 17.37~17.62 43.75
99146-1775S C20-1775-43L 17.62~17.87 43.75
99146-1800S C20-1800-45L 17.87~18.12 45.00
99146-1825S C20-1825-45L 18.12~18.37 45.00
99146-1850S C20-1850-46L 18.37~18.62 46.25
99146-1875S C20-1875-46L 18.62~18.87 46.25
99146-1900S C20-1900-47L 18.87~19.12 47.50
99146-1925S C20-1925-47L 19.12~19.37 47.50
99146-1950S C20-1950-48L 19.37~19.62 48.75
99146-1975S C20-1975-48L 19.62~19.87 48.75
99146-2000S C20-2000-50L 19.87~20.12 50.00
99146-2025S C20-2025-50L 20.12~20.37 50.00
99146-2050S C20-2050-50L 20.37~20.62 50.00
99146-2075S C20-2075-50L 20.62~20.87 50.00
99146-2100S C20-2100-50L 20.87~21.12 50.00
99146-2125S C20-2125-50L 21.12~21.37 50.00
99146-2150S C20-2150-50L 21.37~21.62 50.00
99146-2175S C20-2175-50L 21.62~21.87 50.00
99146-2200S C20-2200-50L 21.87~22.12 50.00
99146-2225S C20-2225-50L 22.12~22.37 50.00
99146-2250S C20-2250-50L 22.37~22.62 50.00
99146-2275S C20-2275-50L 22.62~22.87 50.00
99146-2300S C20-2300-50L 22.87~23.12 50.00
99146-2325S C20-2325-50L 23.12~23.37 50.00
99146-2350S C20-2350-50L 23.37~23.62 50.00
99146-2375S C20-2375-50L 23.62~23.87 50.00
99146-2400S C20-2400-50L 23.87~24.12 50.00
99146-2425S C20-2425-50L 24.12~24.37 50.00
99146-2450S C20-2450-50L 24.37~24.62 50.00
99146-2475S C20-2475-50L 24.62~24.87 50.00
99146-2500S C20-2500-50L 24.87~25.12 50.00
99146-2525S C20-2525-50L 25.12~25.37 50.00
99146-2550S C20-2550-50L 25.37~25.62 50.00

*建議使用扭力起子，參考6-1頁




Ø26~Ø39mm
● 可依加工需求訂購中心出水型頭部


Order No.Part No.ØDL1刀片/螺絲/
板手
99146-26A C20-2600-50L 25.87~26.12 50.00 CCGT060204
CCFT060204
螺絲:
NS-25060
板手: NK-T7
99146-27A C20-2700-50L 26.87~27.12 50.00
99146-28A C20-2800-50L 27.87~28.12 50.00
99146-29A C20-2900-50L 28.87~29.12 50.00
99146-30A C20-3000-50L 29.87~30.12 50.00
99146-31A C20-3100-70L 30.87~31.12 70.00
99146-32A C20-3200-70L 31.87~32.12 70.00
99146-33A C20-3300-70L 32.87~33.12 70.00
99146-34A C20-3400-70L 33.87~34.12 70.00
99146-35A C20-3500-70L 34.87~35.12 70.00
99146-36A C20-3600-70L 35.87~36.12 70.00
99146-37A C20-3700-70L 36.87~37.12 70.00
99146-38A C20-3800-70L 37.87~38.12 70.00
99146-39A C20-3900-70L 38.87~39.12 70.00



Ø40~Ø50mm
● 可依加工需求訂購中心出水型頭部

Order No.Part No.ØDL1刀片/螺絲/
板手
99146-40A C20-4000-70L 39.87-40.12 70.00 CCGT060204
CCFT060204
螺絲:
NS-25060
板手: NK-T7
99146-41A C20-4100-70L 40.87-41.12 70.00
99146-42A C20-4200-70L 41.87-42.12 70.00
99146-43A C20-4300-70L 42.87-43.12 70.00
99146-44A C20-4400-70L 43.87-44.12 70.00
99146-45A C20-4500-70L 44.87-45.12 70.00
99146-46A C20-4600-70L 45.87-46.12 70.00
99146-47A C20-4700-70L 46.87-47.12 70.00
99146-48A C20-4800-70L 47.87-48.12 70.00
99146-49A C20-4900-70L 48.87-49.12 70.00
99146-50A C20-5000-70L 49.87-50.12 70.00



High Speed Boring Bar Kit
Order No.Contents
99146-SB32H-05SET SB32-146-31 Weldon Shank Boring head shank: 1pc
Boring bar: any 5 pcs
from Ø5~Ø50
Key: 3~5 pcs
Plastic box: 1pc
99146-BT30-05SET BT30H Boring head shank
99146-BT40-05SET BT40H Boring head shank
99146-BT50-05SET BT50H Boring head shank
99146-CAT40-05SET CAT40H Boring head shank
99146-HSK63A-05SET HSK63A Boring head shank

99146龍捲風萬轉搪刀 - 組裝流程

  • 用4mm扳手鬆開M8螺絲，不用取出螺絲
  • 用3mm扳手鬆開M6螺絲，不用取出螺絲
  • 取下舊頭部，更換新尺寸的頭部
  • 鎖緊M6預壓螺絲，扭力設定0.9 – 1.0Nm
  • 刀具設定儀預先調尺寸
  • 鎖緊M8鎖固螺絲，扭力設定8-9 Nm

在刀具設定儀

  • 鬆開M8螺絲
  • 設定頭部在中間位置 (Step 1)
  • 量測尺寸值，並設定需要的尺寸 (Step 2)
  • 試加工後，依據所需的尺寸作調整 (Step 3, 4)
  • 鎖固M8螺絲

在切削中心機或銑床上的調整方式

  • 設定在所需尺寸位置 (Step 1)
  • 鎖固M8螺絲
  • 先試搪一個孔，3 ～ 5mm深
  • 根據加工尺寸大小，作尺寸調整 (Step 2, 3)
  • 鎖緊M8鎖固螺絲 (Step 4)


容易操作

  • 4 ～ 6xD加工深度，動平衡良好

經濟實惠

  • 低成本，高效率，可取代端銑刀、搪孔刀
  • 更換刀片可切削各種不同材種

應用

  • 取代端銑刀，尤其是小孔徑搪孔
  • 電子零件，精密零組件加工

接桿
● 搪孔刀經濟型解決方案

Order No.Part No.ØDL
99151A-04 C20-ID04 4 49
99151A-06 C20-ID06 6 52
99151A-08 C20-ID08 8 49
99151A-10 C20-ID10 10 42
99151A-11 C20-ID11 11 21.5
99151A-15.5 C20-ID15.5 15.5 21.5

鎢鋼刀桿 Ø5~Ø20
● 搪孔深度：L1 , 4～6xD

Order No.Part No.ØDØdØd1L1L2L刀片/螺絲/板手Fig.
99151-0500W C06-0500-20L 4.87~5.12 6 - 20.00 - 70 CCGT030102
螺絲:
NS-16030
板手:NK-T6
99151-0525W C06-0525-20L 5.12~5.37 6 - 20.00 - 70
99151-0550W C06-0550-22L 5.37~5.62 6 - 22.00 - 70
99151-0575W C06-0575-22L 5.62~5.87 6 - 22.00 - 70
99151-0600W C06-0600-24L 5.87~6.12 6 - 24.00 - 70
99151-0625W C06-0625-24L 6.12~6.37 6 - 24.00 - 70
99151-0650W C06-0650-26L 6.37~6.62 6 - 26.00 - 70
99151-0675W C06-0675-26L 6.62~6.87 6 - 26.00 - 70
99151-0700W C08-0700-28L 6.87~7.12 8 - 28.00 - 85 CCGT040102
螺絲:
NS-20036
板手:NK-T6
99151-0725W C08-0725-28L 7.12~7.37 8 - 28.00 - 85
99151-0750W C08-0750-30L 7.37~7.62 8 - 30.00 - 85
99151-0775W C08-0775-30L 7.62~7.87 8 - 30.00 - 85
99151-0800W C08-0800-32L 7.87~8.12 8 - 32.00 - 85
99151-0825W C08-0825-32L 8.12~8.37 8 - 32.00 - 85
99151-0850W C08-0850-34L 8.37~8.62 8 - 34.00 - 85
99151-0875W C08-0875-34L 8.62~8.87 8 - 34.00 - 85
99151-0900W C10-0900-36L 8.87~9.12 10 - 36.00 - 110 CCGT060204
CCFT060204
螺絲:
NS-25045
板手:NK-T7
99151-0925W C10-0925-36L 9.12~9.37 10 - 36.00 - 110
99151-0950W C10-0950-38L 9.37~9.62 10 - 38.00 - 110
99151-0975W C10-0975-38L 9.62~9.87 10 - 38.00 - 110
99151-1000W C10-1000-40L 9.87~10.12 10 - 40.00 - 110
99151-1025W C10-1025-40L 10.12~10.37 10 - 40.00 - 110
99151-1050W C10-1050-42L 10.37~10.62 10 - 42.00 - 110
99151-1075W C10-1075-42L 10.62~10.87 10 - 42.00 - 110
99151-1100W C10-1100-44L 10.87~11.12 10 - 44.00 - 110
99151-1200W C11-1200-150L 11.87~12.12 11 11 70.00 20 150 CCGT060204
CCFT060204
螺絲:
NS-25045
板手:NK-T7
99151-1300W C11-1300-150L 12.87~13.12 11 - 70.00 - 150
99151-1400W C11-1400-150L 13.87~14.12 11 - 70.00 - 150
99151-1500W C15.5-1500-180L 14.87~15.12 15.5 14 90.00 90 180
99151-1600W C15.5-1600-180L 15.87~16.12 15.5 15 90.00 90 180 CCGT060204
CCFT060204
螺絲:
NS-25060
板手:NK-T7
99151-1700W C15.5-1700-180L 16.87~17.12 15.5 - 100.00 - 180
99151-1800W C15.5-1800-180L 17.87~18.12 15.5 - 100.00 - 180
99151-1900W C15.5-1900-180L 18.87~19.12 15.5 - 100.00 - 180
99151-2000W C15.5-2000-180L 19.87~20.12 15.5 - 100.00 - 180
